Steam Boilers

High pressure or Low pressure?
If the required steam pressure/temperature is 13psi/246° or less you are looking at a low-pressure boiler. Anything above this pressure/temperature requires a high-pressure steam boiler.
The Rite Advantage - Our steam boilers are built with an integral superheater. Superheaters provide more energy per lb of steam compared to other designs. The design also eliminates the need for steam separators or dryers to maintain the highest quality of steam.

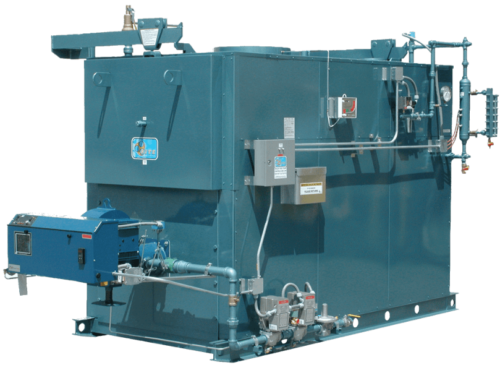

Steam Boiler
Steam Boiler

Steam boilers are a key piece in your heating or production puzzle.  Rite designs and builds boilers with operations in mind.  They are specifically engineered to be completely repairable in the field, to provide long reliable service.  The ability to access, inspect and clean the boiler watersides means that the boiler efficiency will be just as great in twenty years as it was when you installed the boiler.

Type
MAWP
Operating Pressure
Input Range MBTu/H
Output Range MBTu/H
Boiler
Horsepower
Range
Low Pressure LP (15 PSI)
15 PSI
0-13.5 PSI
150-12,500
120-9,999
4 - 300
High Pressure HP (150 PSI)
150 PSI
10-147 PSI
390-10,500
318-8,365
9.5 - 250
